How to Lubricate an AR-15 Bolt Carrier Group

A dry AR-15 does not earn toughness points. It earns friction, sluggish cycling, unnecessary wear, and a rifle that may quit when the round count climbs. Knowing how to lubricate an AR-15 bolt carrier group is basic readiness work: simple, fast, and worth doing right before a range day, training block, hunt, or hard-use session.

The goal is not to drown the rifle in oil. The goal is to keep the surfaces that move under load properly lubricated while keeping excess lubricant out of places where it can trap grit, migrate into the chamber area, or collect carbon. Think disciplined application, not a full-on oil bath.

Start Safe Before You Lubricate an AR-15 Bolt Carrier Group

Clear the rifle before it comes apart. Remove the magazine, lock the bolt to the rear, and physically and visually inspect the chamber, magazine well, and bolt face. Keep live ammunition off the maintenance bench. Once you have confirmed the rifle is unloaded, separate the upper and lower receivers and remove the bolt carrier group and charging handle according to your rifle's manual.

Put down a rag or mat that lets you see small parts. If the bolt carrier group is heavily fouled, wipe it down first. Lubricant belongs on metal contact surfaces, not on a thick layer of old carbon, sand, brass shavings, or burnt powder residue.

You do not need a laboratory-clean bolt carrier group after every range trip. AR-pattern rifles are built to run dirty. But a carrier covered in gritty sludge is not the same thing as a hard-running rifle. Clean off loose debris and old excess oil before applying fresh lubricant.

Choose Oil Over Heavy Grease

A quality firearms lubricant or CLP is the straightforward choice for most AR-15 owners. Use a product designed to maintain lubricity under heat and movement. A light oil that stays put reasonably well is usually more useful than a thick grease on the bolt carrier group.

Heavy grease can work in certain controlled conditions, but it can also slow movement in cold weather and hold onto dust, unburned powder, and grime. That makes it a poor default for a carbine that sees outdoor use, fast shooting, or mixed conditions. Penetrating sprays are not a substitute for a real lubricant, and motor oil is a compromise when purpose-built gun oil is readily available.

Climate matters. In hot, dry conditions, a slightly wetter carrier can keep the action moving through heat and carbon. In dusty country, use enough oil to lubricate the bearing surfaces, then wipe away every drip and puddle. In freezing conditions, use a light lubricant rated for low temperatures and apply it sparingly.

The Key AR-15 Bolt Carrier Group Lubrication Points

The bolt carrier group has several surfaces that benefit from oil. You are looking for a thin, visible film, not oil running down the carrier. If you can tilt the carrier and watch lubricant drip off, you have probably used too much.

Oil the carrier rails

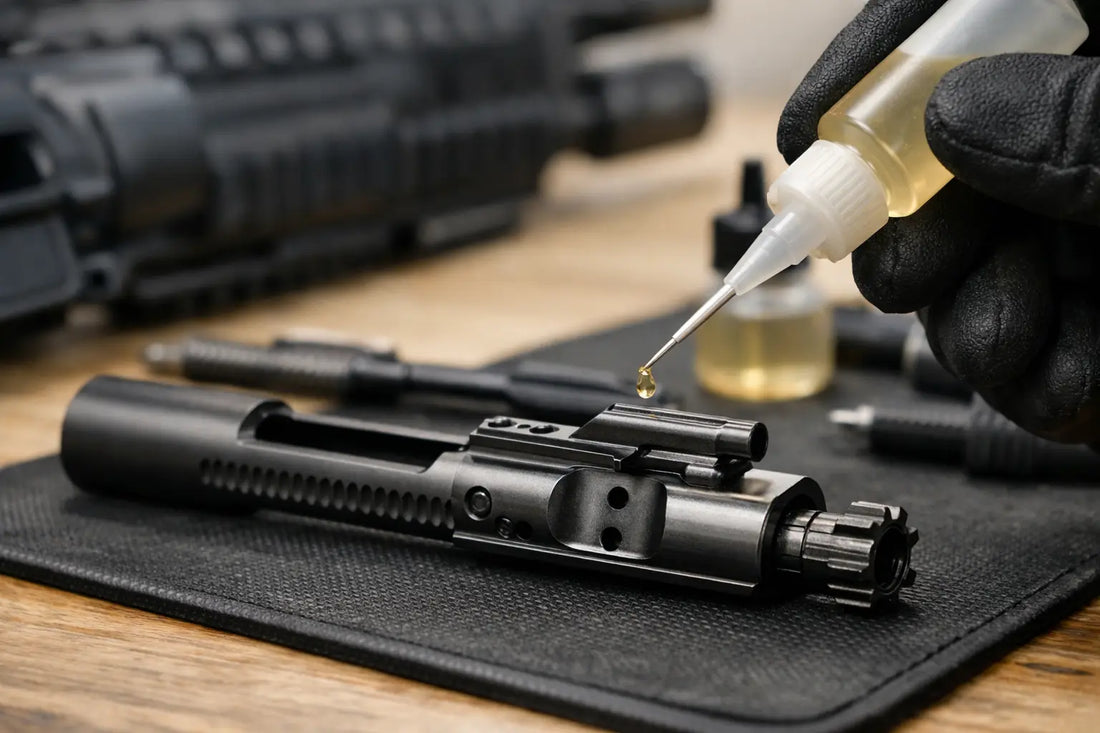

Apply a few drops along the four raised bearing rails on the outside of the carrier. These rails ride inside the upper receiver and do much of the work during cycling. Spread the oil with a clean finger, patch, or cloth until each rail has a light, even coat.

Do not ignore the underside of the carrier where it rides over the hammer. A light film there reduces friction during cycling. This is especially useful on rifles that see high round counts or have a new, tight-fitting action.

Lubricate the cam pin and cam path

The cam pin rotates the bolt during locking and unlocking. It sees real friction, so place a small drop on the outside of the cam pin and work it into the cam path in the carrier. Rotate the bolt by hand a few times to spread the lubricant.

This point is easy to miss and hard use will expose that mistake quickly. A dry cam pin area can leave visible wear marks and add resistance where the action should move smoothly.

Coat the bolt lightly

Place a small amount of oil around the outside of the bolt body, especially on the areas that move through the carrier. Give the locking lugs a thin wipe as well. The bolt should look lightly wet, not glossy with a heavy coating.

The gas rings need only a light film. They are not a reservoir for oil. Excess lubricant around the rings and inside the carrier can attract carbon and debris, then turn into a sticky mess after repeated firing.

Apply a tiny amount around the extractor pivot area if it looks dry, then work the extractor gently to distribute it. Avoid soaking the extractor spring assembly. It does not need to be dripping to function correctly.

Keep the firing pin channel mostly dry

The firing pin itself can receive the faintest wipe of oil if corrosion is a concern, but do not pour lubricant into the firing pin channel. Keep the bolt face, firing pin opening, and the area around the cartridge primer clean and mostly dry. Excess oil here can attract fouling and migrate where it does not belong.

The same rule applies to the interior of the carrier. A thin film on moving surfaces is enough. There is no prize for filling the carrier with oil.

Reassemble and Run a Quick Function Check

Reinstall the bolt in the carrier, making sure the cam pin is properly oriented and the firing pin retaining pin is fully seated. Reinsert the bolt carrier group and charging handle into the upper receiver, then close the rifle.

Cycle the action by hand several times. The charging handle should move with steady resistance, and the bolt should lock and unlock without binding. Wipe off any oil pushed out around the ejection port, receiver extension area, or outside of the upper. That is your sign that enough lubricant is already inside.

Perform a basic function check according to the manufacturer’s instructions. Do it with the rifle unloaded and pointed in a safe direction. If something feels gritty, unusually tight, or mechanically wrong, stop and inspect the assembly instead of forcing it.

How Wet Should an AR-15 Bolt Carrier Group Be?

For most range rifles, a bolt carrier group should look lightly wet on the rails, cam pin, and bolt body. You should be able to see the lubricant, but it should not form thick beads or run onto your hands after a few cycles.

For a suppressed rifle, more frequent lubrication is usually smart. Suppressors drive more fouling back into the action, and the carrier can get dirty fast. A few drops on the rails and cam pin during a long shooting day may be more useful than waiting until the rifle feels sluggish.

For a rifle carried in dust, sand, or brush, use less oil and inspect it more often. The answer is not to run it bone dry. It is to use a controlled amount of lubricant and remove abrasive debris before it becomes grinding paste.

A new rifle may also benefit from a slightly wetter break-in period, while a proven rifle with a smooth action often needs less. Every gun has its own temperament, especially when you factor in ammunition, buffer weight, gas system setup, temperature, and suppressor use.

Common Lubrication Mistakes That Cause Problems

The first mistake is running the carrier dry because someone said ARs run better that way. They may continue functioning for a while, but dry metal-on-metal contact adds wear and can reduce reliability as heat and fouling build.

The opposite mistake is excessive oil. Too much lubricant can blow back into the receiver, coat the inside of the magazine well, gather fouling, and create a mess that disguises wear or actual mechanical problems. Wet is good. Dripping is not.

Another common failure is oiling only the visible bolt and forgetting the carrier rails and cam pin. The carrier rails are major friction points. If you are short on time, prioritize those rails, the cam pin, and a light coat on the bolt body.

Finally, do not use lubrication to cover up a rifle that needs repair. A damaged gas ring, worn extractor, loose gas key, broken spring, or out-of-spec part needs inspection and correction. Oil supports a sound system. It does not fix a broken one.

Treat bolt carrier lubrication like loading magazines or checking your optic mount: a small piece of preparation that keeps the whole machine honest. Set up your bench, apply oil with purpose, cycle the action, and then get back to the work. A clean rifle and a hard-hitting cup from Gunpowder Grind make a solid pre-range ritual, but neither replaces disciplined maintenance.
